MFS, MFE Series

FEATURE

The MFS/MFE series is a material feeding system that uniformly and stably supplies 1K and 2K materials, contributing to precise dispensing and the realization of excellent final product quality. Depending on the optional configuration, continuous, unlimited supply is possible, supporting long-term, stable, and economical process operation.

- No industrial safety certification is required as it does not use compressed air.

- Vacuum degassing time, preheating function, and stirring function can be freely adjusted according to the characteristics of the materials.

- The tank interior is maintained in a constant vacuum state, preventing material deterioration or curing issues.

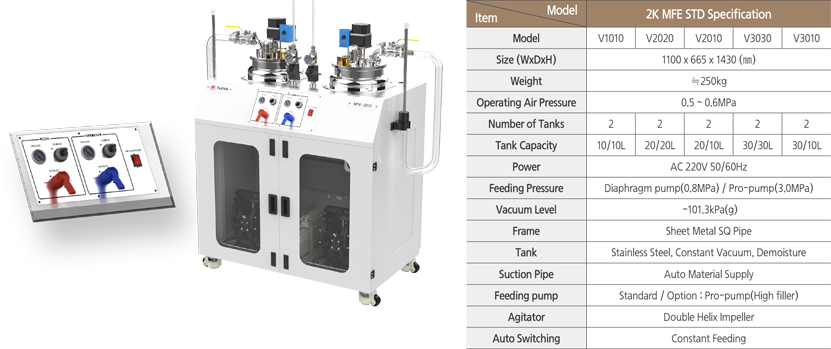

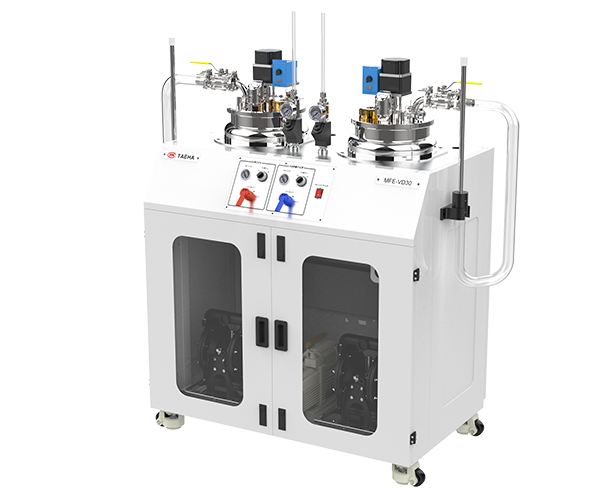

2K MFE Series (Manual type)

 TAEHA's MFE Series is an entry-level, manually controlled material feeding system that offers an affordable price and stable performance.

Operated by a 3-way hand valve, it allows for easy handling by operators and convenient maintenance.

Available for both 1-component and 2-component applications, with various additional options, it ensures accurate and reliable material supply tailored to customer requirements.

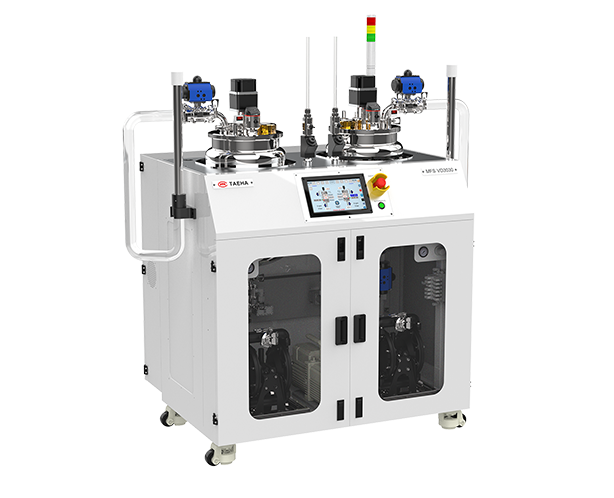

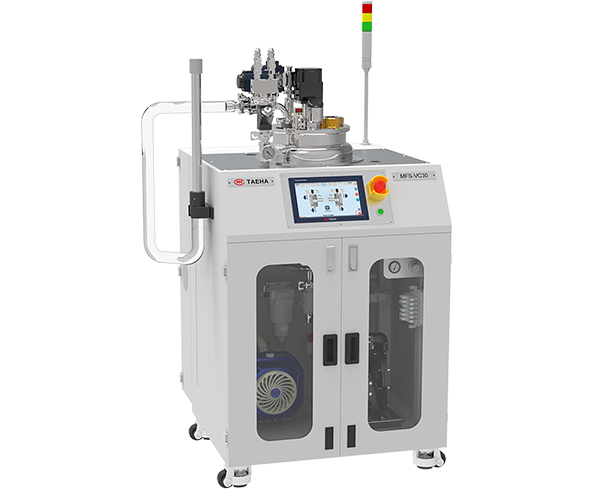

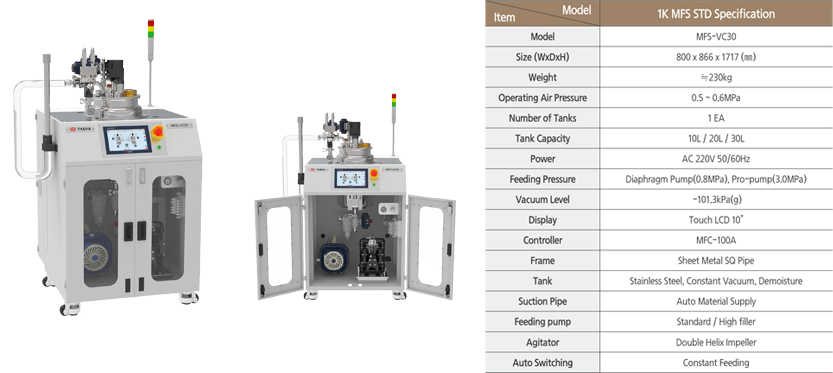

1K MFS Series (Automatic type)

The MFS Series features a touchscreen-based, user-friendly interface and dedicated software, allowing operators to easily control the equipment, with simple maintenance.

Available for both 1-component and 2-component applications, with various additional options, it enables precise material supply tailored to customer requirements.

The use of uniform, bubble-free materials is essential for achieving optimal dispensing results and securing excellent product quality.

The MFS Series is an automatically controlled system that utilizes proprietary material supply software to ensure reliable material supply and dispensing quality.

This enhances the accuracy and consistency of material preparation and supply processes, allowing effective responses to diverse customer production demands.

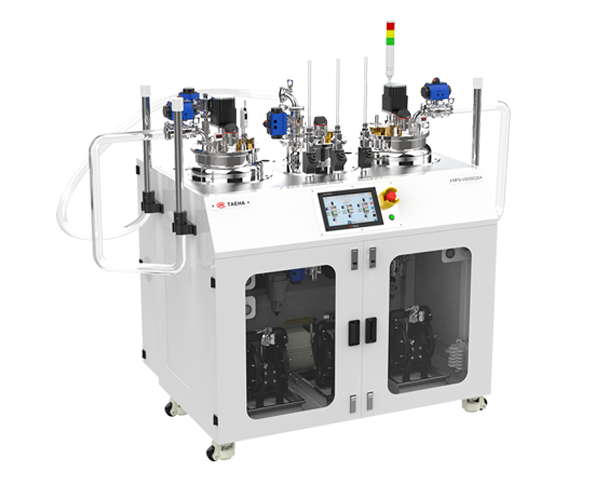

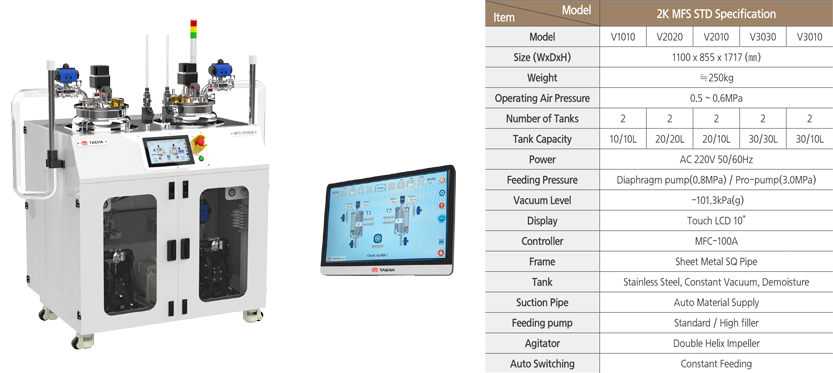

2K MFS Series (Automatic type)





Option Specifications
