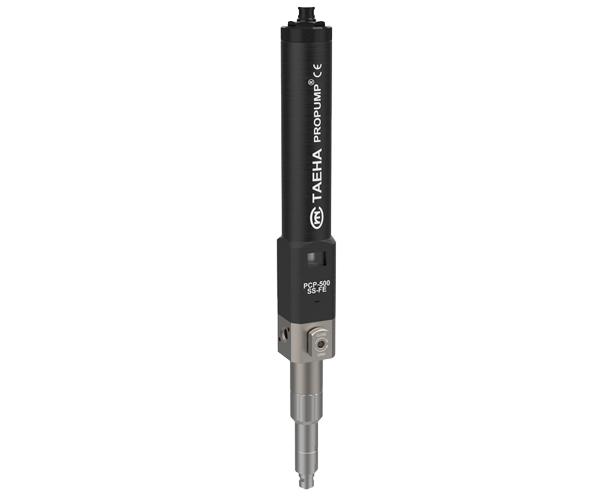

The PRO-PUMP PCP series is a compact and innovative 1-component dispensing device that achieves excellent precision even when dispensing challenging materials.
Due to the hermetically sealed space seamlessly formed between the Rotor and Stator, it can maintain a higher vacuum than general pumps, resulting in superior
material suction capability. It maintains a very constant flow rate without pulsation.
The volume of material transferred is independent of the dispensing pressure and increases or decreases in proportion to the rotational speed of the Rotor.
This allows for precise transfer and dispensing of even difficult-to-handle materials as needed, simply by adjusting the number of stages.
No separate valve is required for material transfer, and the material transfer direction can be reversed.
This is an innovative dispensing device that can easily dispense materials containing high-filler materials, thanks to TAEHA's proprietary rubber molding technology.
(High filler stator, High filler rotor)
We provide the best dispensing system by combining the PCP Series with the most suitable material feeding container / device / equipment for the material and dosing conditions.
Model Specifications

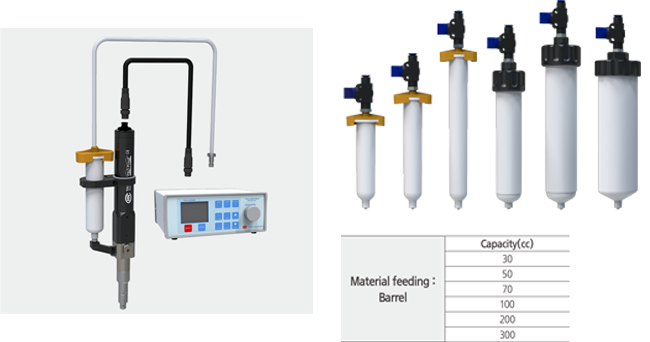

PCP Barrel module system
BARREL (30, 50, 70, 100, 200, 300cc)
PCP Cartridge module system
CARTRIDGE (170, 340, 650, 1000cc, Sealant 330cc)
PCP Can pump system
CAN PUMP (1, 3, 5, 18kg can)
PCP Tank system
TANK (1, 3, 5, 10, 20L)
