FEATURE

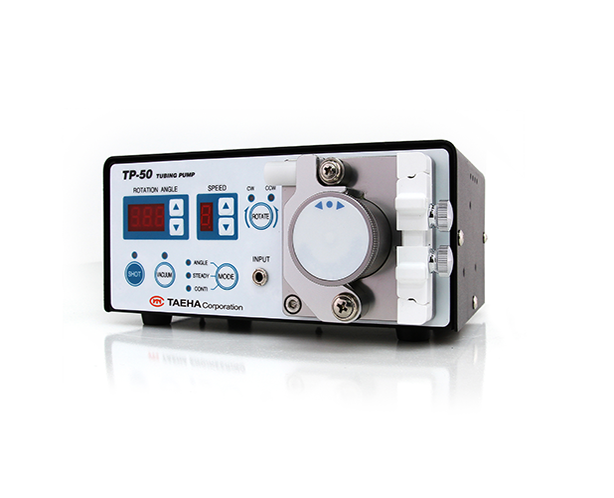

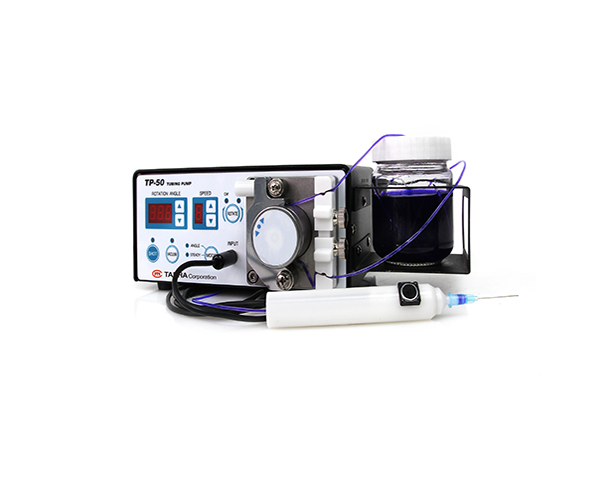

A dispenser that delivers precise, stable micro-dispensing of low-viscosity materials at high-speed.

Specifications


Excels at dispensing cyanoacrylates, anaerobic adhesives, inks, and solvents (low-viscosity).

Operates without compressed air ; material is dispensed by rotor rotation.

TAEHA's proprietary head minimizes bubble formation inside the PTFE (Teflon) transfer tube, extending tubing life.

Micro step motor control for outstanding metering accuracy and shot-to-shot consistency.

Industrial-grade reliability with a very low failure rate and long service life.

Compact footprint for easy installation and integration.

Competitive price for its functionality

Accessories for TP-50

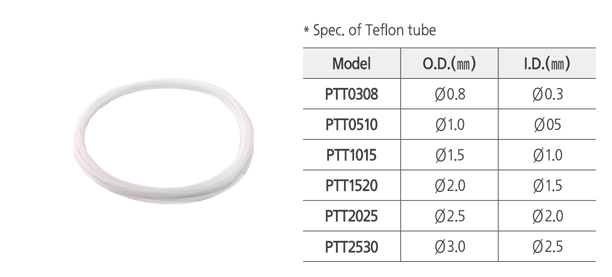

- Teflon tube


- Nozzle holder

Hold the tube and connect it to the needle. The holder tip is changed according to the size of the tube.


- Nozzle holder switch

The holder tip is changed according to the size of the tube


- Cup holder

Holder for storing adhesive containers


- Cup holder Bracket
