PDP Series

FEATURE

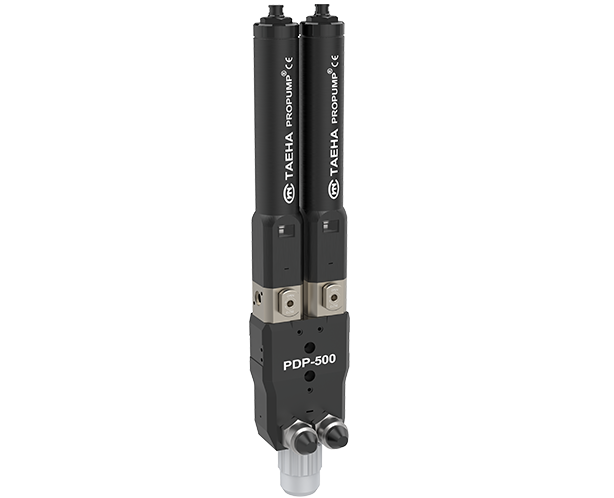

The PRO-DUO PUMP series provides excellent precision for dispensing difficult-to-dispense 2-component materials. It is a volumetric pump that allows users to directly control the desired mixing ratio of the two materials. Its special eccentric screw structure enables stable and long-term dispensing by mixing 2-component materials. Compared to conventional volumetric pumps, it boasts high efficiency and reproducibility, with superior quantitative accuracy and repetitive precision.



Dispensing volume can be adjusted easily and quickly through the control of the ROTOR's rotation amount and speed.

It can be suitably applied in various situations, including differences in viscosity or mixing ratios between the two materials.

By using a method of replacing the consumable mixer instead of cleaning the pump itself, maintenance is easy, enabling economical dispensing.



Model Specifications

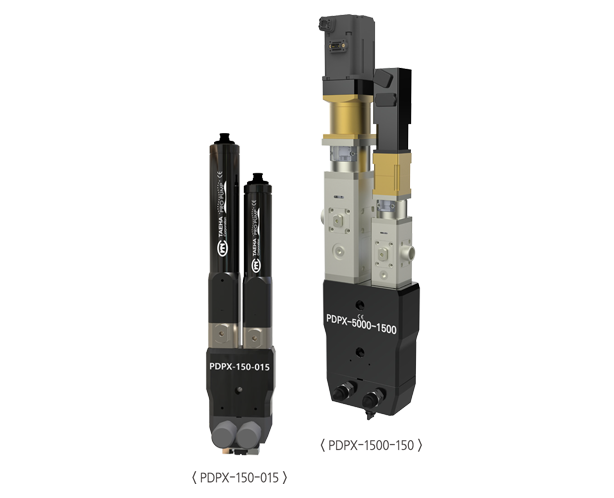

PDPX Series

The PDPX series is a pump designed for situations where there is a significant viscosity difference or mixing ratio between two materials, and it is manufactured by combining pumps of different capacities. Various X-combinations of the pump are possible, and we recommended selecting the optimal configuration after consulting with a sales representative.





The mix adapter, which is installed when applying a static mixer to the PRO-DUO PUMP, has different models depending on the type of static mixer and mix ratio of 2K materials.

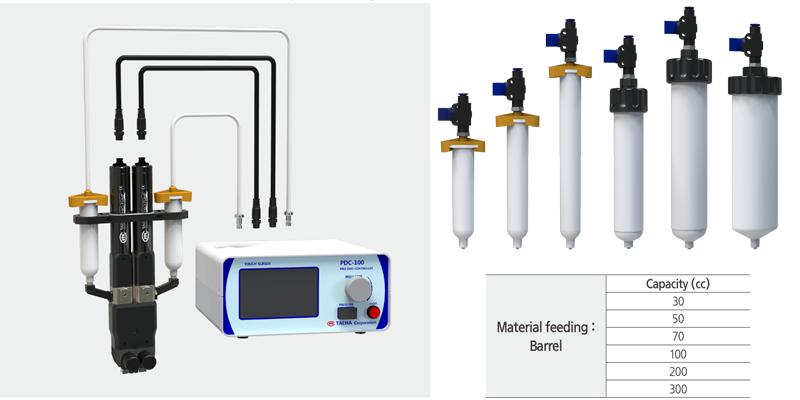

PDP Barrel module system

Barrel(30, 50, 70, 100, 200, 300cc)

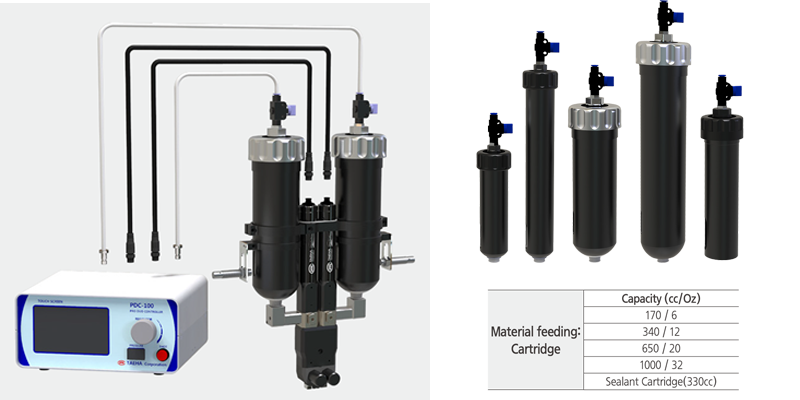

PDP Cartridge module system

Barrel(30, 50, 70, 100, 200, 300cc)

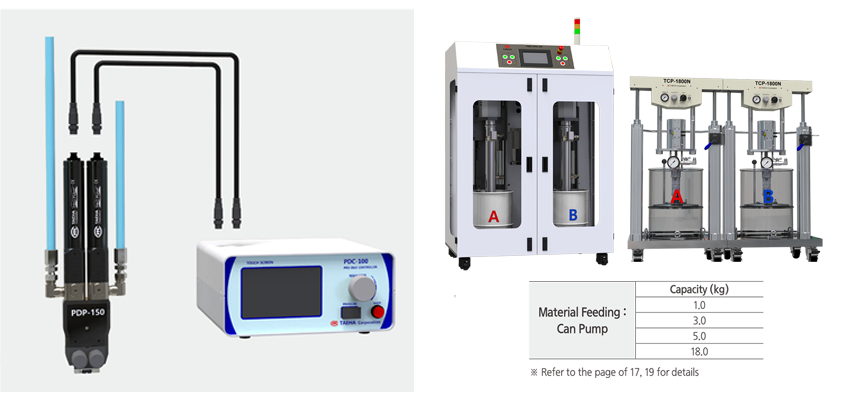

PDP Can pump system

Dual can pump(1, 3, 5, 18 kg can)

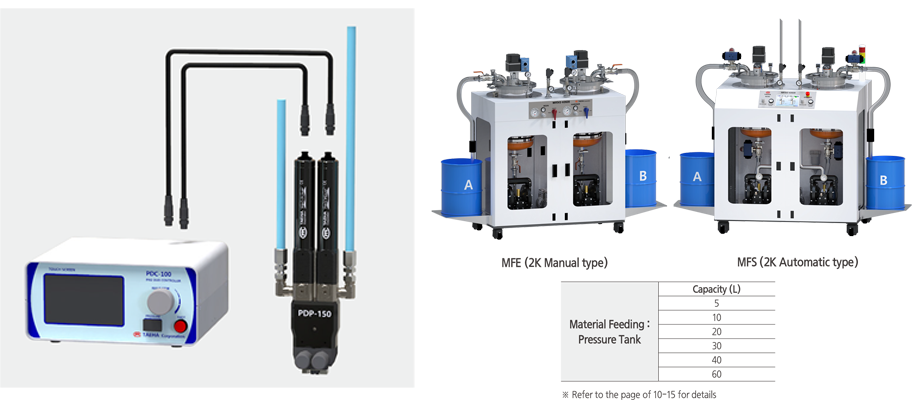

PDP Tank system

Dual tank(5, 10, 20, 30, 40, 60L)
