This is a valve system that uses compressed air to spray materials in the form of a fine mist. It is used in industrial settings to spray with precision in consistent patterns, mainly for small-volume precise coating, non-contact dispensing, and automated equipment.

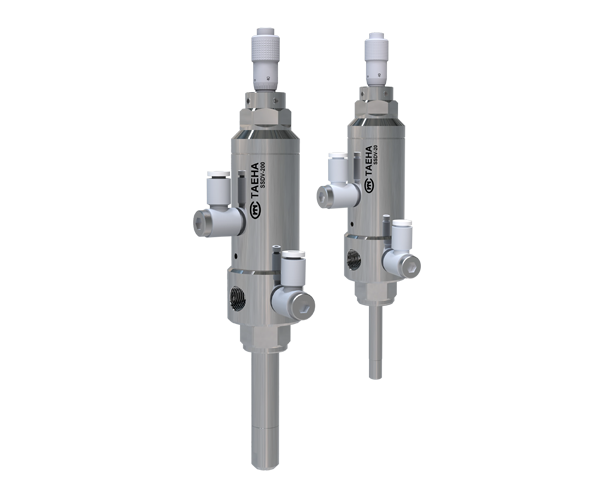

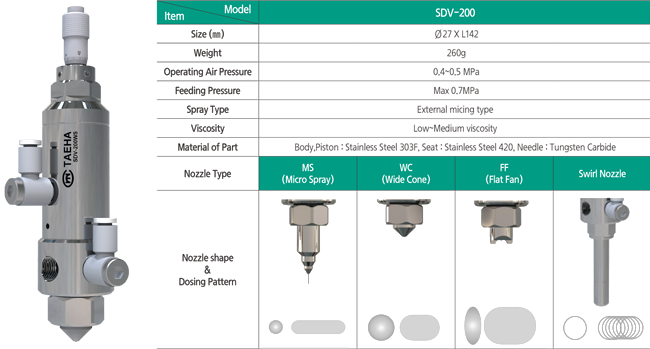

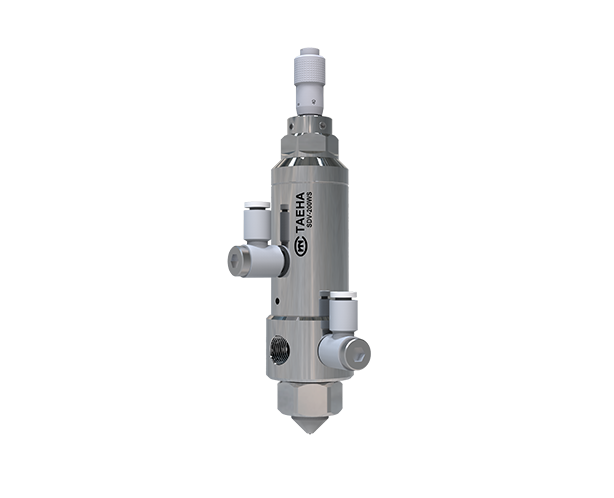

SDV Series
- Low-pressure, low-flow type enables uniform fine spray without overspray, ensuring stable operation without nozzle tip clogging.
- Made of tungsten carbide for excellent durability and offers a wide range of nozzle options for flexible control of spray width and pattern.

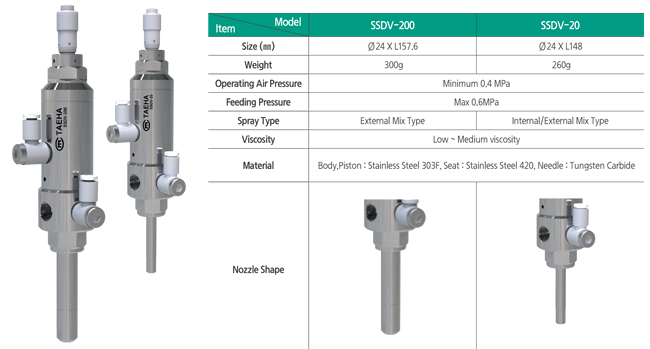

SSDV Series
- Precisely dispenses Bead, Line, and Swirl sprays by adjusting the drive solenoid and spray pressure.
- Offers excellent durability due to its tungsten carbide material.
- The spray flow rate can be conveniently controlled with micrometers, fine-angle nozzles, and needles.

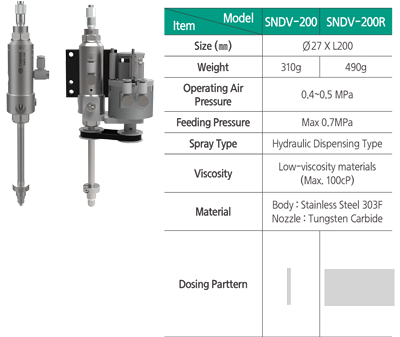

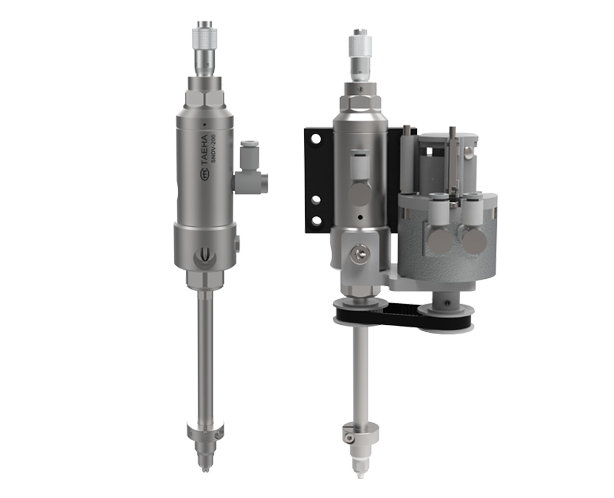

SNDV Series (Spray Nozzle)
- Low-flow/wide-pattern/film coating spray nozzle valve
- Provides stable spraying without overspray and allows easy flow adjustment
- Equipped with a high-speed solenoid valve for precise material control and fast 90˚ tilting operation

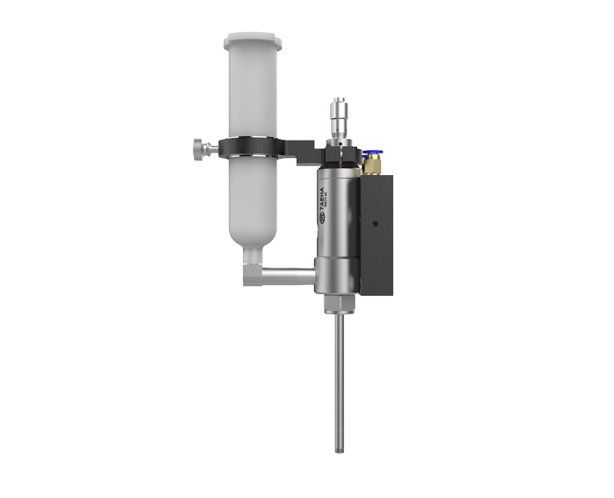

RSDV-20 (Radial Spray)
- Fine, micro-volume spraying of low-viscosity materials onto the inner surface of circular products
- Achieves uniform spray coating on interior surfaces
- Equipped with micrometers, fine-angle nozzles, and needles for ultra-precise spray volume adjustment
Spray Controller SVC-400
