High-Precision dispensing : ±1% accuracy with servo-driven dinamic mixing.
Auto-Cleaning system : Prevents material curing for effortless maintenance.
Intuitive Smart Control : Easy opeartion via touchscreen and 15-channel memory.
Material Feeding System, MFS-V3030C20
Transfers and supplies two-component materials stably and efficiently, with a built-in cleaning function that automatically cleans the mixer and valve internals. Prevents material curing and enhances maintenance efficiency.

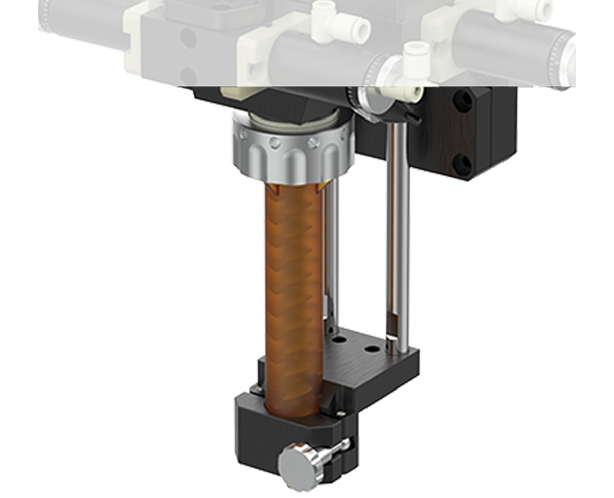

Mixing & Dispensing Head, PRO PUMP + HD MIXER
A combination of the PRO PUMP, capable of ±1% metering accuracy, and a Hybrid Dynamic (HD) mixer driven by a high-speed servo motor. Ensures uniform mixing even for high-viscosity materials.
Mixing & Dispensing Controller, PROC-RD1000
A dedicated controller for two-component mixing and dispensing, optimized for long-duration metered application. Equipped with dedicated software for precise and versatile dispensing. Features a color touchscreen, 15-channel memory for storing settings, excellent compatibility with other equipment, and easy operation.
Applications
- EV battery pack thermal-barrier foam application
- Module fixation and vibration-damping structure filling
- FIPG sealing process
Features
With high-speed servo motor rotation, it achieves uniform mixing even for high-viscosity materials.
High-speed servo rotation ensures uniform mixing, even with high-viscosity materials.
Helix/Dimple mixers are made in-house with our own tooling and injection molding, and are offered in washable/reusable or cost-effective replaceable types.
An anti-drip valve prevents dripping and ball-up after dispensing, resulting in a clean finish and improved downstream process quality.
A purge system (air curtain) provides excellent overspray prevention and keeps the work environment clean. (Optional)
An auto-cleaning function cleans the mixer and valve internals, preventing material curing and improving maintenance efficiency. (Optional)
A circulation system maintains material density and prevents viscosity change, ensuring quality stability during extended operation. (Optional)
A temperature control system (heating/cooling) controls viscosity and reaction rate and helps stabilize foam quality. (Optional)

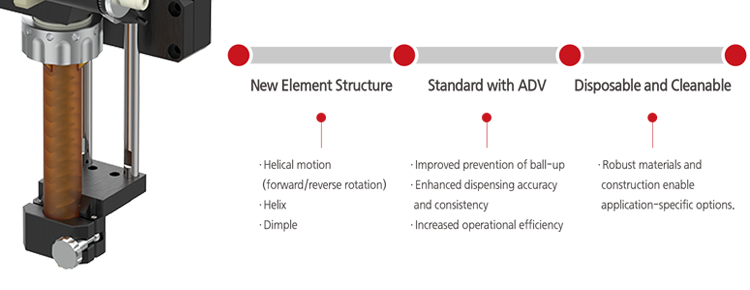

Hybrid Dynamic Mixer HD MIXER
The newly designed impeller structure significantly enhances shear force, delivering optimal mixing energy.
With TAEHA's proprietary injection molding technology, the dynamic mixer is seamlessly integrated with the Anti-drip valve, effectively preventing dripping and ball-up phenomena while maintaining a clean working environment.
This advanced multifunctional unit improves not only mixing performance but also workability and efficiency, ensuring a high-quality dispensing process.

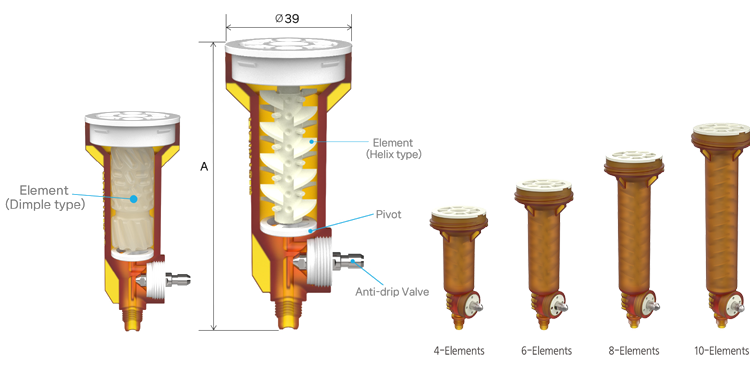

With a broad lineup by volume, element geometry, and element count, and an integrated mixer featuring ADV(Anti-drip valve), the system delivers excellent usability.
The HD MIXER is supplied as a consumable and can be cleaned and reused when required.

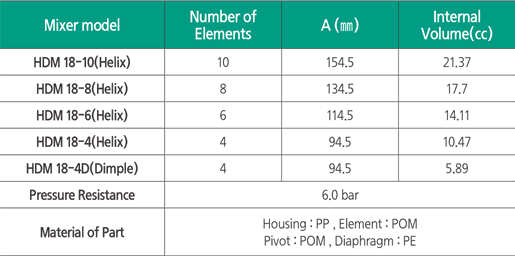

Model Specifications
