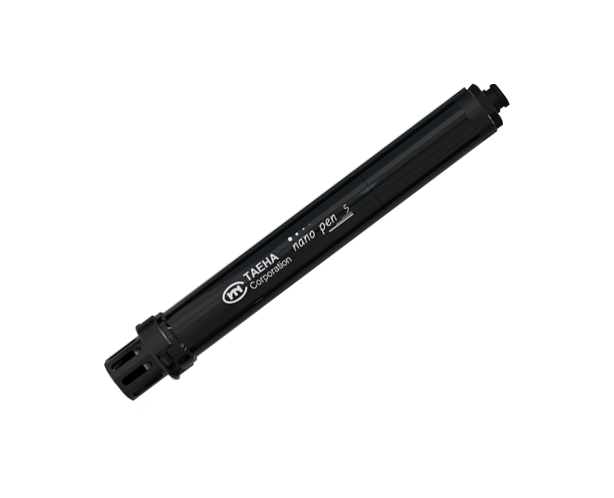

A pen-type, high precision micro-dispensing system based on an electric motor drive (without requiring pneumatic pressure), which enables precise dispensing through electronic control.
It can accommodate 3/5/10/30cc capacity barrels, and dedicated barrels and plungers must be used.
It is a pen-type dispenser that can precisely dispense minute amounts using a motor-driven method, without requiring air pressure.
This is a new concept dispenser that enables convenient and stable ultra-fine volume dispensing.
The magnetic component applied inside the Nanopen facilitates barrel replacement and setup.

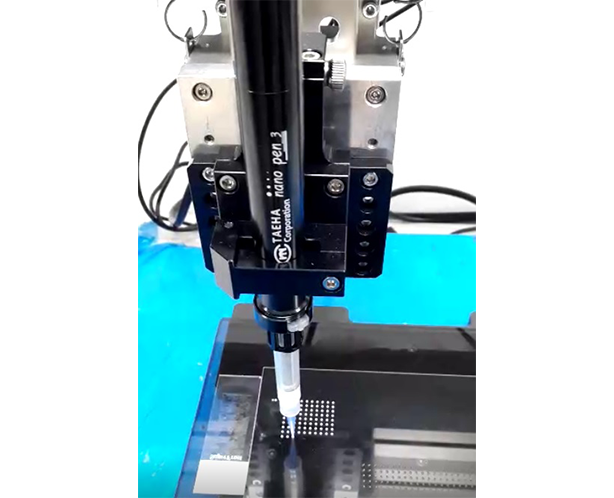

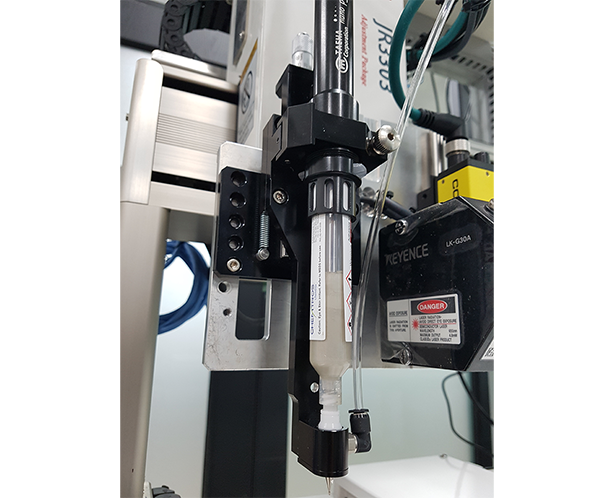

With its simple and compact design and structure, it is easy to integrate into automated lines or multi-head configurations,
and capable of high-speed dispensing, making it applicable to various applications.

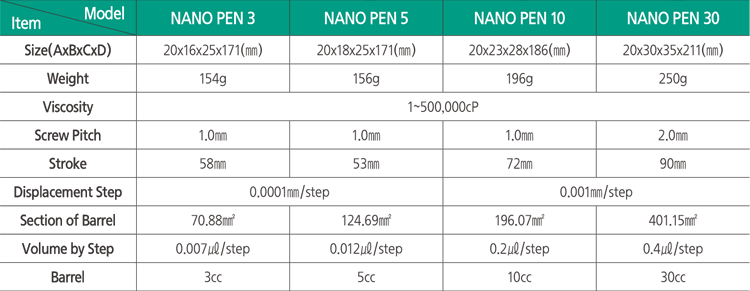

Model Specifications

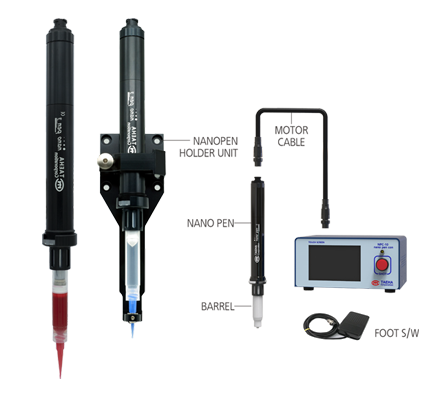

Standard system configuration
The NPC-10 is a dedicated controller for the Nano Pen system, featuring digital multi-functions and simple operation for easy volume control.
It ensures stable, high precision micro dispensing.

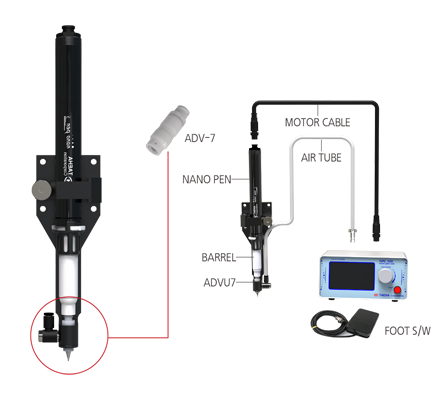

Valve-equipped system configuration
By integrating the Nano Pen and ADV (Anti-Drip Valve, ADV7), materials containing fillers (low to high viscosity) can be dispensed in ultra-small volumes through needles with an inner diameter of Ø0.5mm or less.
The ADV removes residual pressure and prevents dehydration cake, effectively reducing nozzle clogging.
When using the NPC-10V, the Nano Pen and ADV can be configured as an interlinked system.
