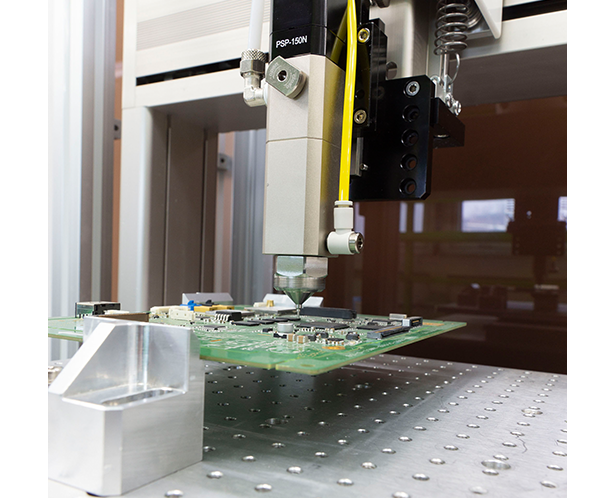

The PSP series is an ultra-precision volumetric spray pump system that utilizes a combination of material supply pressure and spray air pressure to achieve dispensing from ultra-fine spray to large-volume spray. It has established a new standard for industrial metering pumps with its strong chemical resistance and precise dispensing capabilities.

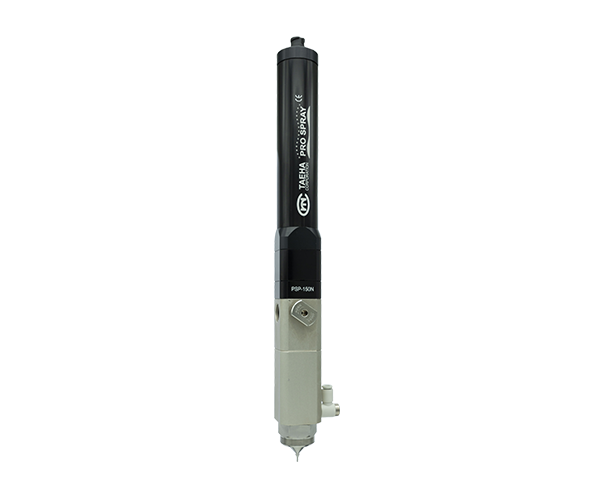

The PRO-SPRAY PUMP is an ultra-precision volumetric spray pump that combines material supply pressure and spray air pressure to achieve dispensing from ultra-fine spray to large-volume spray.
Working in conjunction with dedicated control equipment, it allows for easy adjustment and setting of various spray dispensing widths.

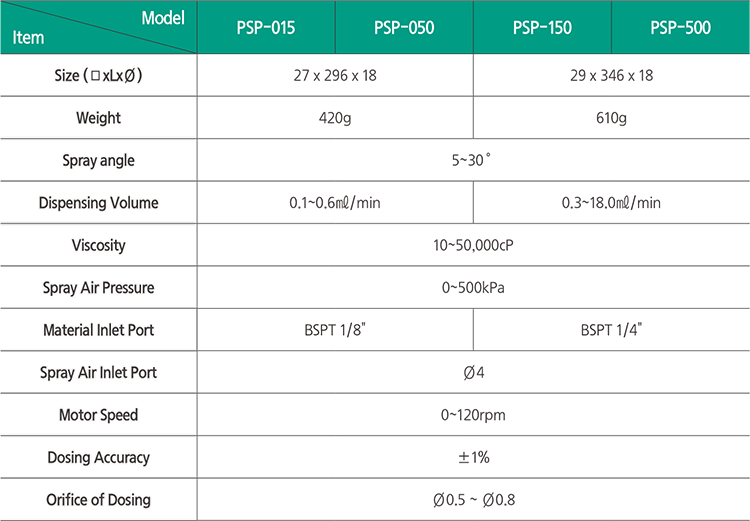

Model Specifications

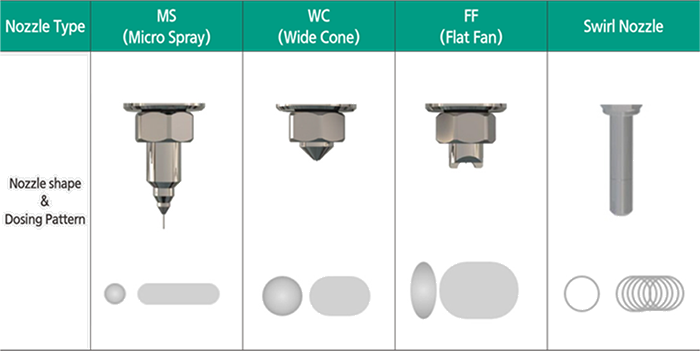

It features a lineup of various spray nozzle types, enabling dispensing according to the customer's desired spray pattern. (Refer to the table below.)
Its special swirl structure design minimizes material loss due to overspray and surrounding contamination during spraying.
The convenient adjustability of spray volume and air pressure combination enables spray dispensing suitable for various applications.

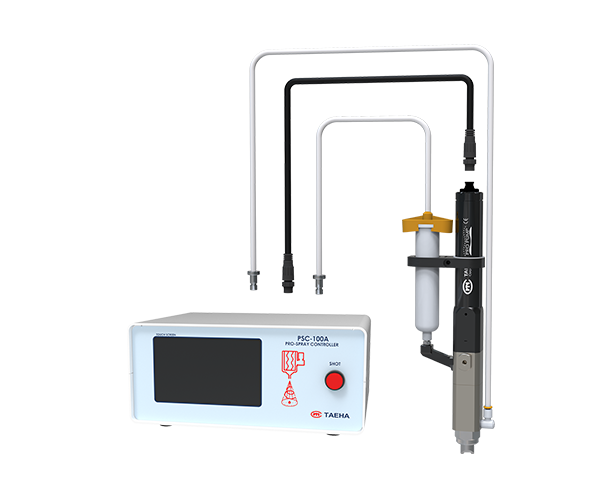

PRO-SPRAY CONTROLLER
PSC-100A
The PSA-100A controller is equipped with dedicated software for PSP pumps, enabling precise and diverse types of spray dispensing operations.
It features a 5.4-inch color touchscreen, offering excellent data recognition and easy operation.
With its 30-channel setting memory function, it boasts excellent compatibility with external equipment such as PC and PLC.
It can continuously perform various tasks through its external interface.
Intuitive operation settings and data modification make it easy for anyone to operate, an it offers various operating modes,
including TIME mode, STEADY mode, and AUTO mode, for flexible setting of dispensing conditions.
