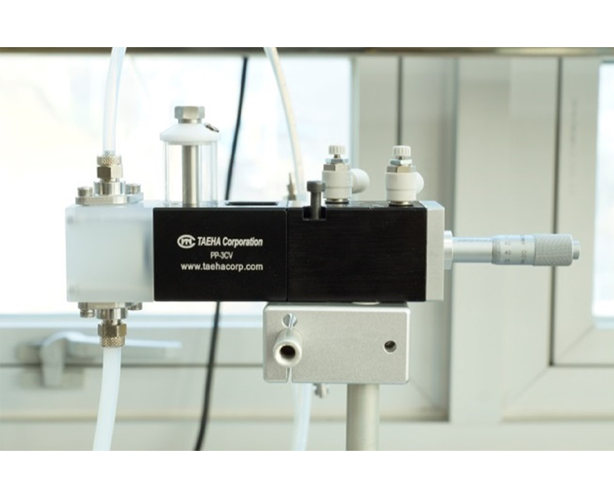

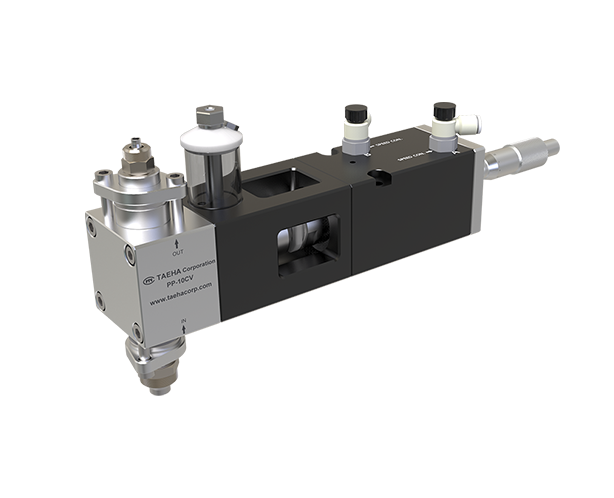

Pneumatic double-acting pump for low-viscosity materials (≤ 5,000cP). Select the appropriate plunger for the required dispensing volume to ensure stable and precise dispensing. Available in four models with maximum dispensing volumes of 1cc, 3cc, 5cc, and 10cc, with fine adjustment possible via micrometer.
High precision
Quantitatively dispenses low-viscosity materials below 5,000cP with high precision, maintaining an error margin of ±0.5%.
High reliability
Achieves accurate and stable quantitative dispensing through product standardization.
High Durability
Enables long-term precision dispensing by utilizing special high-elasticity and wear-resistant seal materials.
High adaptability
Easily allows changes in materials and specifications to be applicable to various substances.

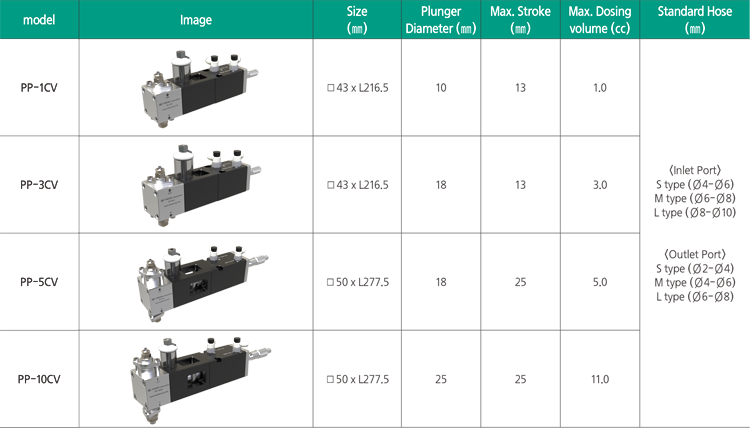

Model Specifications

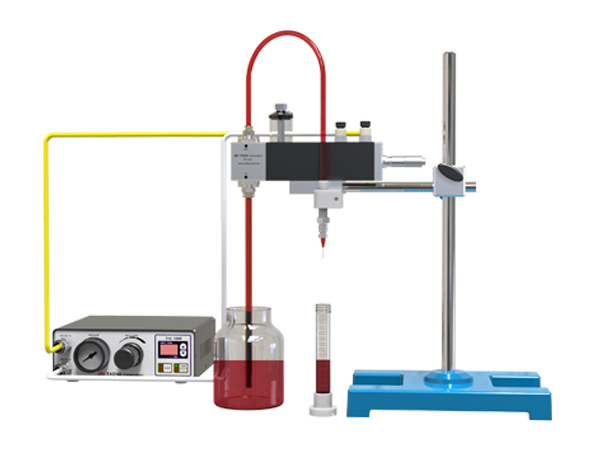

System configuration

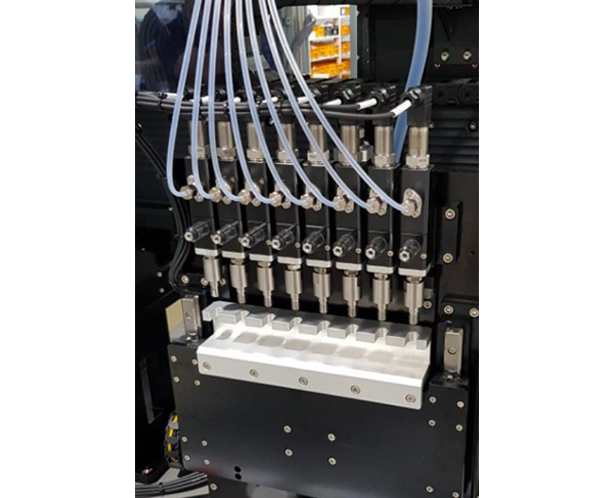

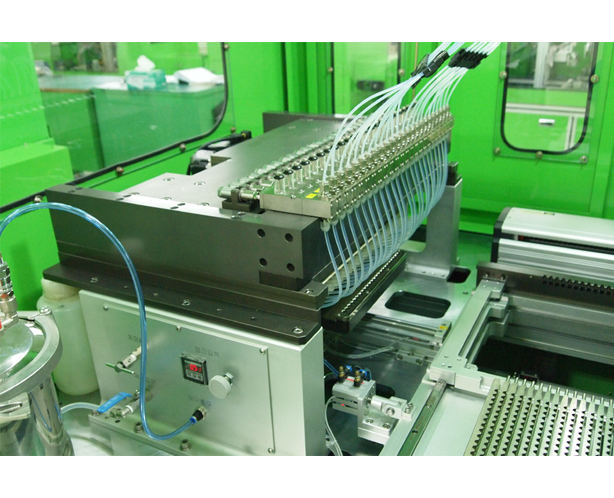

Applications
- Industrial : oil, adhesive, solvents, electrolyte, etc
- Food : sauce, jam, syrup, etc
- Cosmetic : lotion, cream, shampoo, conditioner, perfume, air freshener, etc
- Bio : reagent, enzyme, etc
